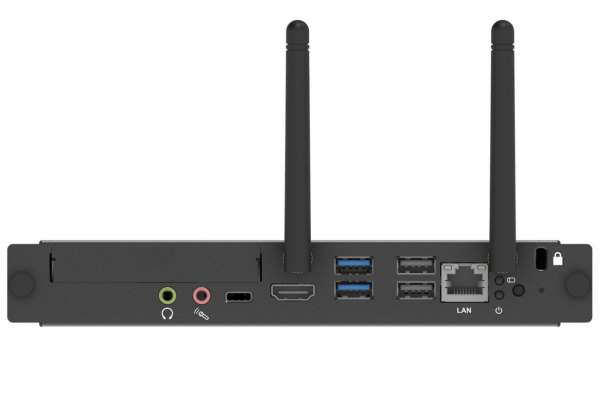

iiyama OPC5801BC
Intel® i5 OPS slot PC with Windows® 10 IoT Enterprise and TPM 2.0 (Trusted Platform Module)
This mini OPS PC with Intel® Core™ i5 inside turns your iiyama interactive large format display into a stand-alone solution. It comes equipped with a powerful Intel® processor with integrated Ultra HD graphics and a fast SSD drive. No hassle with cables and having to mount a PC at the back of the monitor or on a floor lift. Simply slide in the iiyama OPS slot PC and get started right away.
The module is only compatible with the iiyama TExx02MIS Series; 65'': TE6502MIS-B1AG, 75": TE7502MIS-B1AG, 86'': TE8602MIS-B1AG and with the 98" of the iiyama 04 Series: TE9804MIS-B1AG
| Power supply unit |
internal |
| Power usage |
63W typical, 1.2W stand by |
| Product dimensions W x H x D |
133.5 x 30 x 202mm |
| Box dimensions W x H x D |
192 x 72 x 267mm |
| Weight (without box) |
.7kg |
| Weight (with box) |
.9kg |
| EAN code |
4948570032822 |
| Operation temperature range |
0°C - 45°C |
| Operation humidity |
10% - 90% |
| Storage temperature range |
- 20°C - 60°C |
| Storage humidity |
10% - 90% |
| Type |
OPS slot PC |
| CPU |
Intel® Core™ i5-8265U, TPM 2.0 (Trusted Platform Module) |
| RAM |
8GB DDR4 |
| SSD |
256GB M.2 |
| Graphics |
Intel® UHD Graphics 620 |
| Sound card |
Integrated High Definition Audio Stereo |
| Networking |
10/100/1000M Adapter |
| WiFi |
802.11ac (2.4GHz/5GHz) |
| Bluetooth |
5.0 |
| Operating system |
Win 10 IoT Enterprise 64-bit |
| LAN (RJ45) |
x1 |
| USB |
3.0 x2, 2.0 x2, 3.1 Type C x1 (DP Alt Mode not supported) |
| HDMI Out |
x1 |
| Headphone connector |
yes |
| Microphone In |
x1 |
